EH-7810 Memory Man

Please note: This page is part of an ongoing site migration and may be incomplete. The original, complete version is available on my previous website.

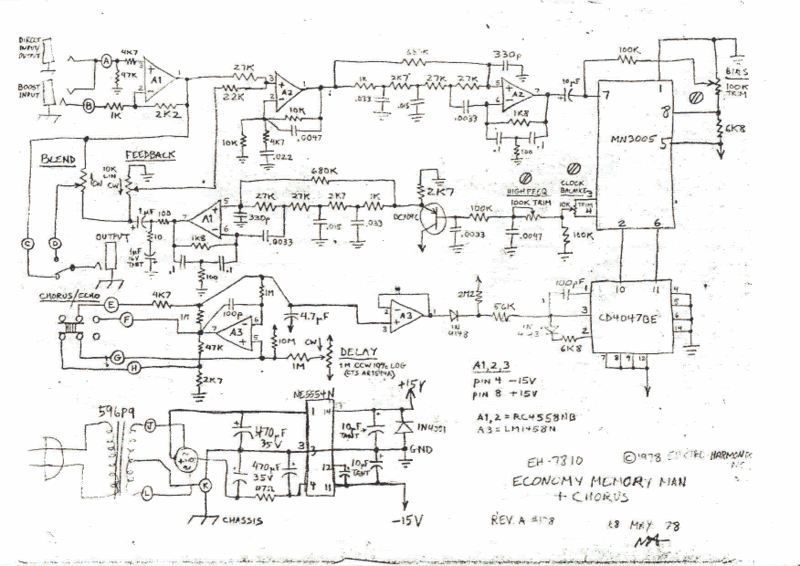

EH 7810 Memory Man schematic
EH 7810 Memory Man schematic
PCB EH 7810
Panel Text Memory Man
Panel Colors Black and Blue
Knobs 3
Switch Echo/Chorus
BBD IC MN3005
Special feature Boost input

EH 1338 links here.  I have not verified any differences, but this would appear to be the schematic for 1338.  The color schemes may be different in addition to any circuit changes.

NE5554 voltage regulator.  This also pops up in the original Micro Synthesizer schematic.  This part was probably deemed too expensive/excessive when a simple transistor regulator does the job just fine.  All of the op amps on this Memory Man have 30V (+/-15) power supplies, unlike most versions where the supply is only 15V.

This Memory Man includes a MN3005 delay chip, but no compander.

Also interesting on this Memory Man is a “high freq.” trim pot just after the “cancel” trim (called “clock balance” here).  The 100k variable resistor and the 4.7nF cap set a simple -6dB/oct low pass filter.

A3B forms another unique feature of EH 7810.  A3B is a LFO, but its dc output is also variable via the DELAY control attached to pin 5.  A3A buffers the CV on its way to the 4047 clock.  The CHORUS/ECHO switch activates or deactivates the oscillation.

I have read of an EH 1338A existing [dead link to EHX forums removed].
