EH 1307B Memory Man
| PCB | EH 1307B |
|---|---|
| Panel Text | Deluxe Memory Man |
| Panel Colors | Red and Blue |
| Knobs | 4 |
| Switch | Squelch |
| BBD IC | SAD1024 |
| Compander | Yes |

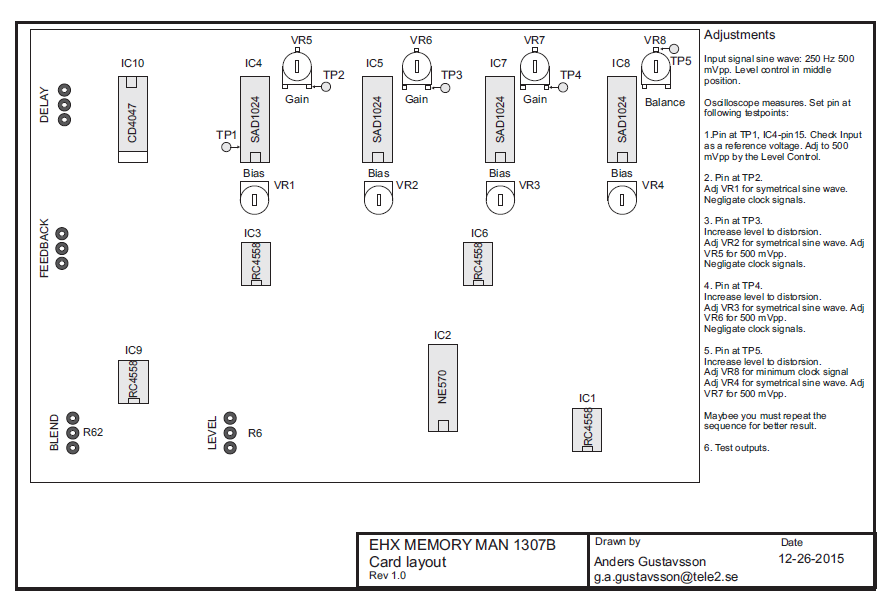

I received this layout for the 1307B Memory Man from Thomas Nydén. He said his father Anders Gustavsson drew the layout. Thomas had contacted me after seeing my site, and we discussed Memory Man calibration over email. I think this layout is great, and it even includes the calibration procedure. This has been posted with Thomas’ permission.

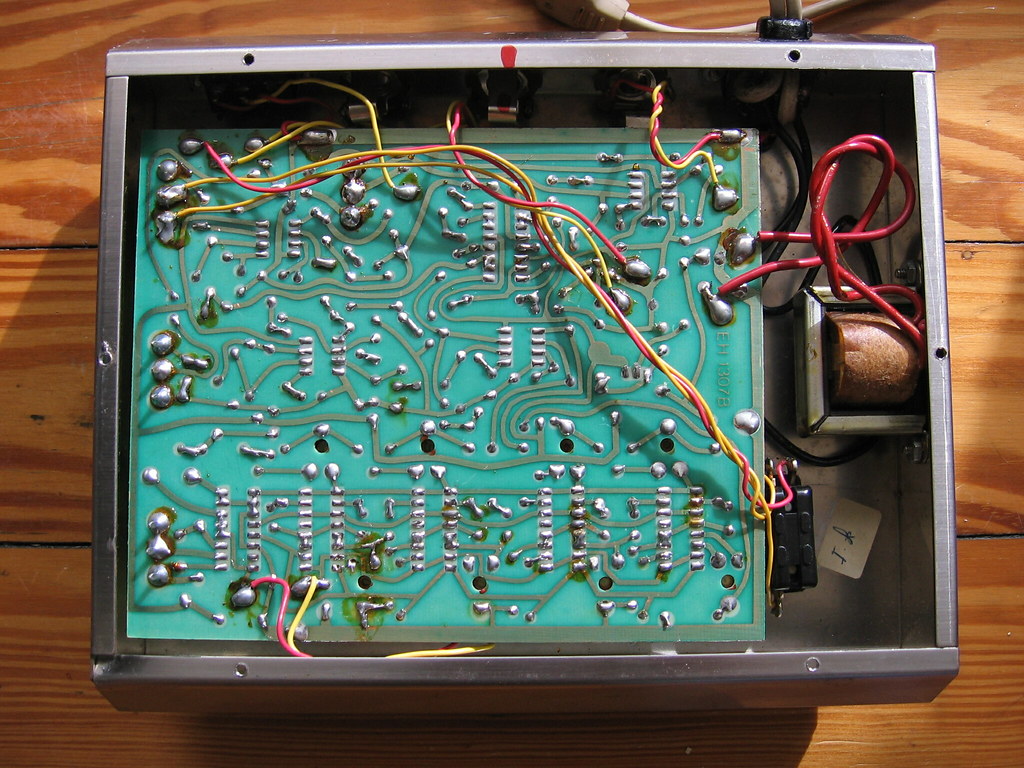

Here is a picture of the solder side showing the “EH 1307B” designator that was posted on the EHX forums:
