EH 1309B Memory Man
| PCB | EH 1309B |
|---|---|
| Panel Text | Memory Man |
| Panel Colors | Black and Silver |
| Knobs | 3 |
| Switch | Boost |
| BBD IC | SAD1024 |
| Special feature | Boost input |

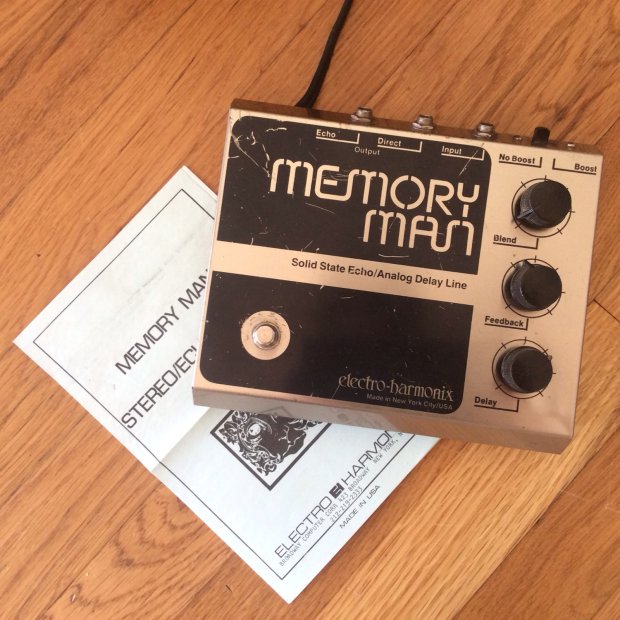

EH 1309B - Memory Man - 3 knobs - Black on gray box - Boost switch - SAD1024

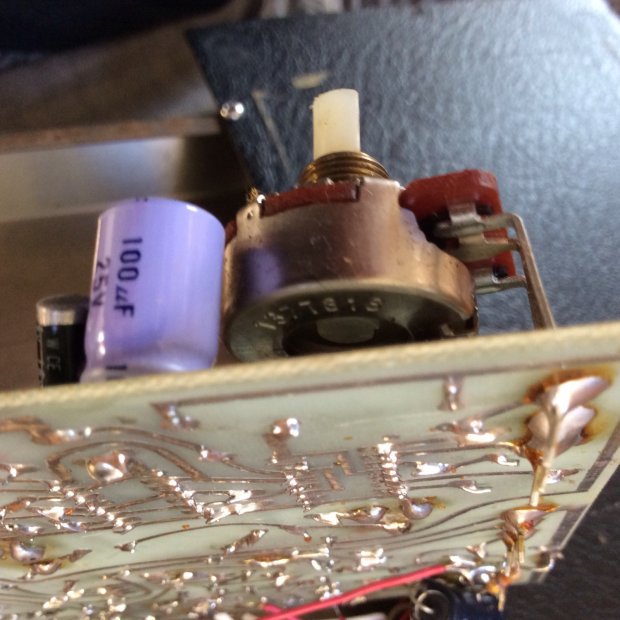

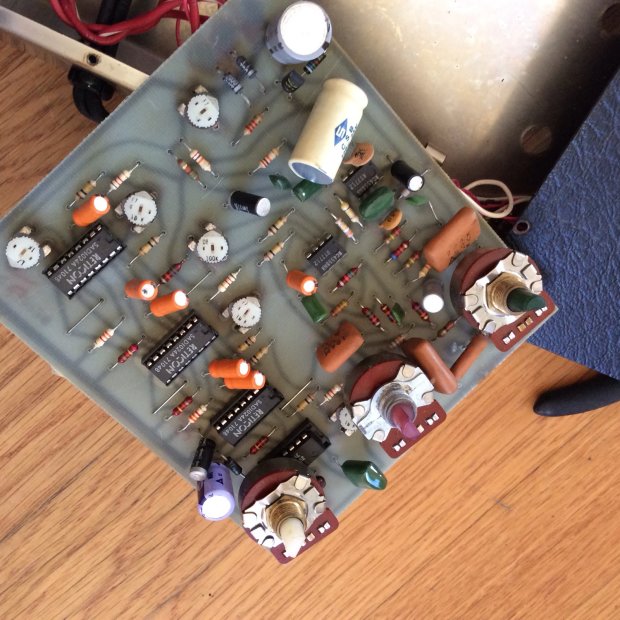

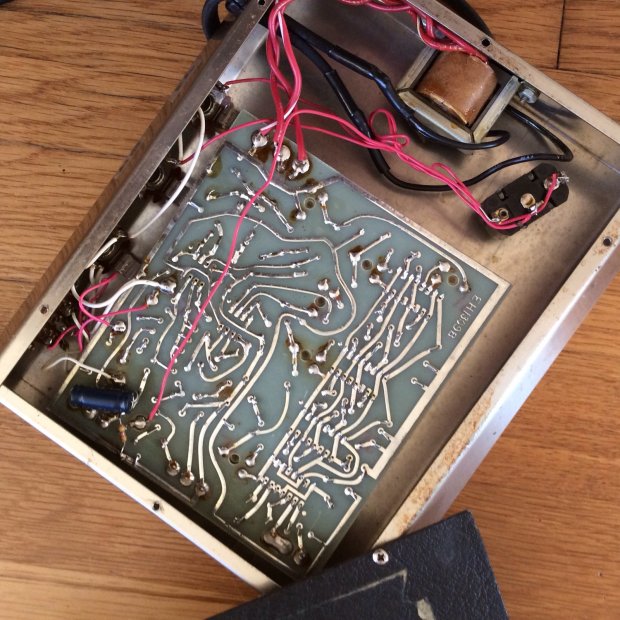

1978 pots. Circuit board reads EH 1309B. The switch now wires directly to the board without “flying” components. That is the only obvious difference between 1309A and B that I have seen so far.
See EH 7500 for a schematic.
